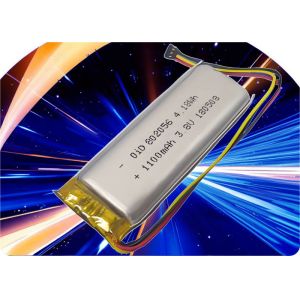

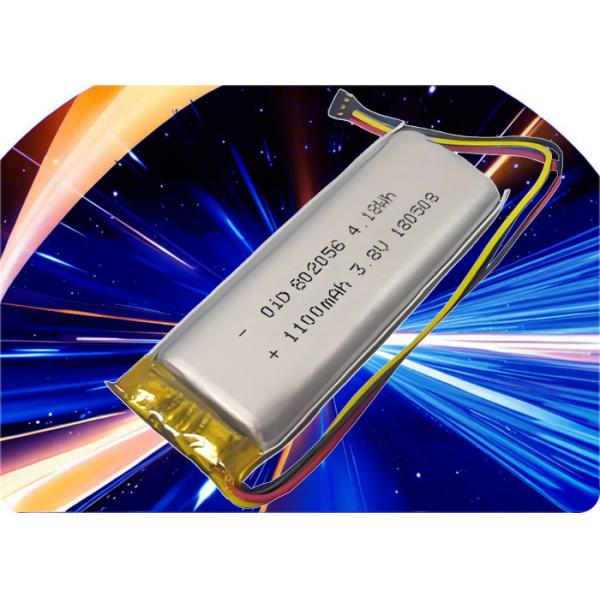

3.8V 1150mAh Li-Ion Battery 500 Cycles 2C Discharge for Pet Trackers

  • 1
  • 2

Brand Name : OiD

Model Number : OiD802056N1150

Certification : Complies with GB/T 18287-2013, IEC/EN61960, and UL1642 safety standards.

Place of Origin : China

MOQ : 100pcs

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT,L/C,Western Union

Name : Lithium Ion Battery

Battery Type : 3.8V, 1150mAh Rechargeable

ODM : Free custom design for packs

High Energy Density : 250-300Wh/kg

Cycle Life : 500+ cycles

Superior Cold Weather Performance : Reliable in Extreme Cold (-20°C to 60°C)

Charging/ Discharging : 3C/ 2C

Flexible Form Factor : Thin, Customizable Pouch Design Lithium Ion Battery

Contact Now

OiD802056N1150 3.8V 1150mAh 2C Discharge 500 Cycles Pet Li-Ion Battery

Product Name

OiD802056N1150 Rechargeable Li-ion Battery

Advantages

  • High energy density with 3.8V nominal voltage for extended runtime.
  • Built-in protection circuit for overcharge/over-discharge/short-circuit safety.
  • Lightweight (19.3g) and compact design for portable applications.

Specifications

Parameter

Value

Nominal Voltage

3.8V

Capacity (Typical/Min)

1150mAh / 1100mAh (0.2C discharge)

Charging Voltage

4.35V

Discharge Cut-off Voltage

3.0V

Standard Charging Current

0.2C

Max Charging Current

3.0C (20°C–45°C)

Standard Discharging Current

0.2C

Max Discharging Current

2.0C (25°C–60°C)

Impedance

≤180mΩ

Weight

Approx. 19.3g

Cycle Life

Condition

Performance

Charge/Discharge Cycles

500 cycles (0.8C charge, 0.2C discharge)

Capacity Retention

≥80% of initial capacity

Discharge Curve

3.8V 1150mAh Li-Ion Battery 500 Cycles 2C Discharge for Pet Trackers

Operating Temperature Range

Condition

Temperature Range

Current Limit

Charging

0°C to 45°C

0.2C (0°C–15°C)

1.0C (15°C–45°C)

Discharging

-20°C to 60°C

0.2C (-20°C–0°C)

0.5C (0°C–25°C)

2.0C (25°C–60°C)

Storage (50% SOC)

-10°C to 25°C (12 months, ≥85%)

N/A

Certifications

  • Complies with GB/T 18287-2013, IEC/EN61960, and UL1642 safety standards.

Key Features

  • Fast Charging: Supports 3.0C max charging (4.35V).
  • High Pulse Discharge: 900mA pulse discharge at 0°C (≥50ms).
  • Fireproof Packaging: Includes Nomex 410 fireproof paper for enhanced safety.

Applications

  • Pet tracking collars and wearable devices.
  • Medical monitoring equipment.
  • IoT sensors and portable electronics.

3.8V 1150mAh Li-Ion Battery 500 Cycles 2C Discharge for Pet Trackers

Usage Warnings & Precautions

  • Avoid exposure to water, heat (>60°C), or crushing.
  • Do not disassemble or short-circuit terminals.
  • Stop use if swelling, leakage, or overheating occurs.

Storage Guidelines

  • Store at 20±5°C with 50% SOC for long-term storage.
  • Recharge to 60% every 3 months if unused.

Warranty & Disclaimer

  • 12-month warranty from shipment date.
  • Misuse or unauthorized modifications void warranty.
